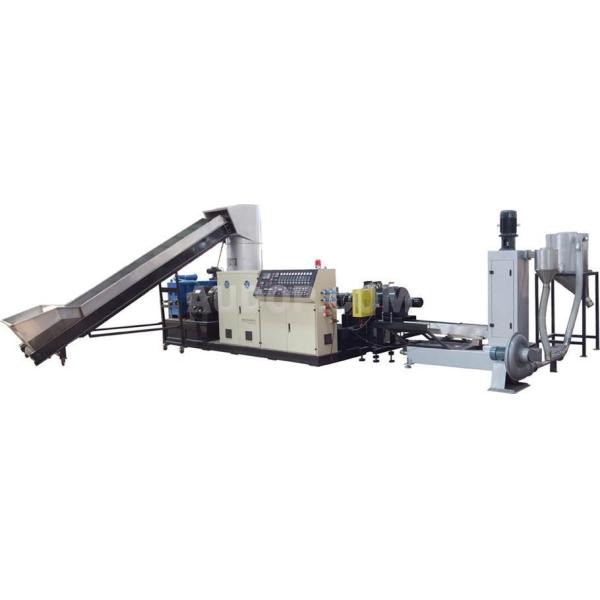

Professional Plastic Pelletizing Machine DIE FACE CUTTING 45KW Main Motor Power

Brand Name : LB

Model Number : SJ120EVA-A

Certification : CE, ISO

Place of Origin : ZHANGJIAGANG

MOQ : 1 SET

Price : USD, EUR

Payment Terms : L/C, T/T

Supply Ability : 10 SETS PER MONTH

Delivery Time : 60 WORKING DAYS

Packaging Details : STANDARD PACKAGE

Condition : New

Main Motor Power : 45KW

OPERATION : FULL AUTOMATIC

FEEDING WSAY : BUILT-IN AGGLOMERATOR

CUTTING WAY : DIE FACE CUTTING

Contact Now

plastic film granulator machine/ PP PE film recycling pelletizing extruder

Product Description

This granule line is specialized for making EVA granules. When with the same specification kneader and mixing mill, they form a complete assembly line, which consists of plasticizing, extrusion, granulizing, cooling, filtration and packing. We have make some special designs to avoid EVA changing to forming.

The whole production line:

Kneader - Bucket Conveyer - Mixing Roller - Extruder mainframe - Auxiliary Cutter - Whirlwind Cooler(1st Process) - Cooling Conveyer - Whirlwind Cooler(2nd Process) - Mixing machine(blender) - Final products.

Technical Parameter

SJΦ120 EVA Air Cooling Granule Line
No.	Item	Description	Specification
1	Kneader(optional)	Model	X(S)N-55L
		Capacity	55L
		Actuating motor power	75kw
2	Bucket conveyer for EVA	Material	Stainless
		Motor Power	1.5kw
		Bucket dimension	*700600300mm*
3	Mixing roller(optional)	Model	XK-400
		Diameter of roller	400mm
		Main motor power	45kw
4	Main extruder	Screw dia	Φ120mm
		Screw Speed	0-50r/min
		Main motor power	45kw (all with inverter)
		Feeder motor power	4kw (all with inverter)
		Cutter motor power	2.2kw
		Heat power	10kw
		Gear box	oil bath lubrication,hardened gear reducer
		Cutting system	air cooling
		Auto thermo control	5 zones
		Screw/barrel material	38CrMoAIA
		Barrel cooling system	water cooling
		Granule diameter	3-5mm
		*Overall dimension (LWH)*	*425018501700mm*
		Weight	2400kg
5	Whirlwind cooler	a. Cooling tank diameter	*Φ6501set**
		b. Cooling tank diameter	*Φ8502sets**
6	Cooling conveyer	Length and width	*4200610mm**
		Thermal Design Power	4.5kw
		Material	Stainless
7	Blender	Capacity	1000L
		Spindle speed	10r/min
		Motor power	11-4kw
8	Air machine	Motor power	3.0kw
		Screw speed	2880r/min
9	Air machine	Motor power	4.0kw
		Screw speed	2880r/min
